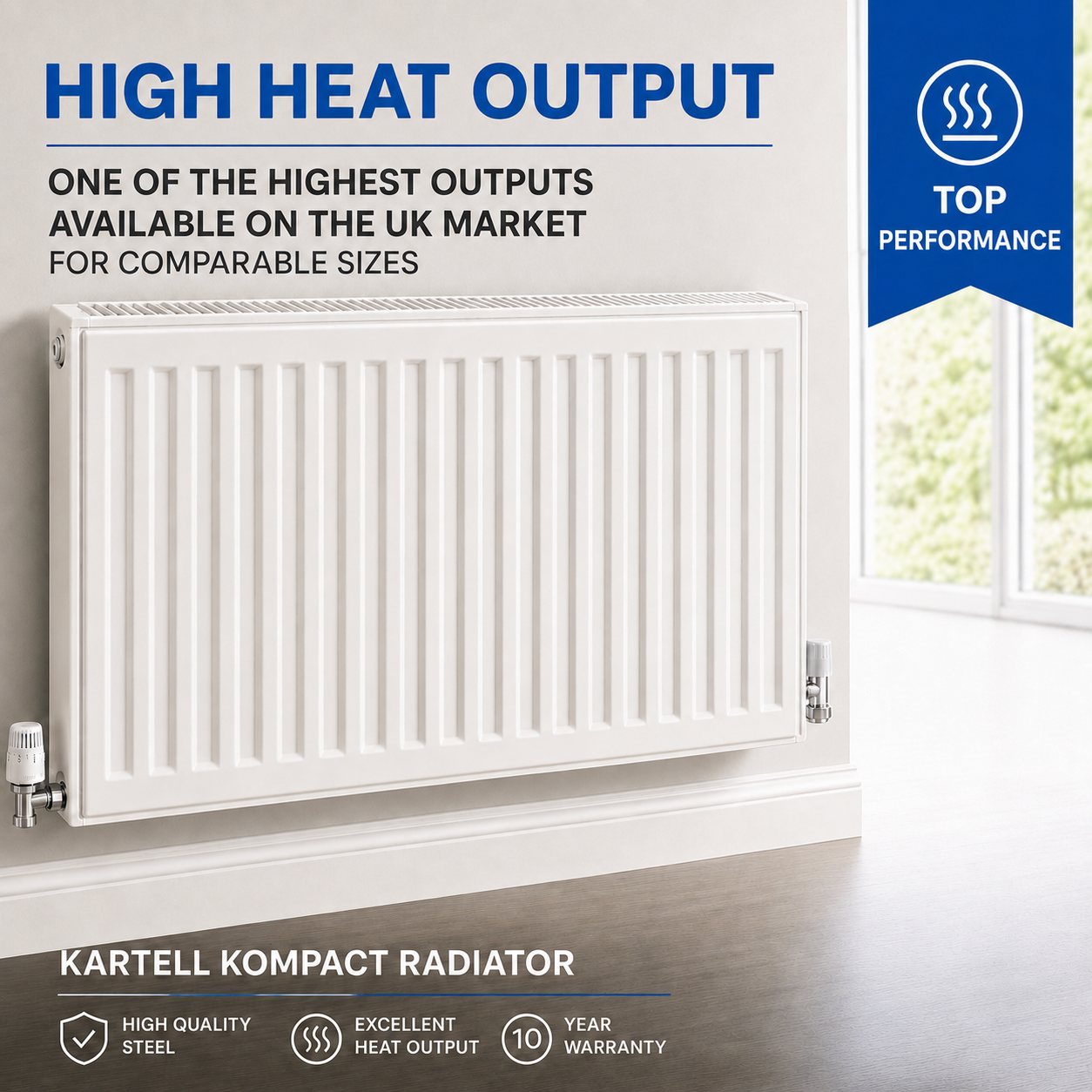

Kartell Krad Type 11 500 x 2200
Kartell Krad Type 11 500 x 2200

Disclaimer: Actual product colors may vary slightly from the images shown due to different monitor settings and lighting conditions during photo shoots.

Kartell

Kartell S522K K-Rad Kompact Type 11 Radiator - 500 x 2200mm

SKU: KAR-S522K

🚚 Available for store pickup or UK mainland delivery

This product can be collected from KPS or delivered across mainland UK.

£85.78
-40% £142.97 £85.78
Available to order
Usually available in 2 - 3 days
Price checked, trade trusted, and ready for the job.

Expert advice, competitive pricing, and dependable supply from KPS Plumbing Supplies.

Got questions?

Feel free to get in touch

Ask an expert!

Video chat Chat Email 01423803370

K-Rad Type 11 500 x 2200 Radiator

This K-Rad Type 11 radiator is a single panel, single convector model designed for efficient heating in larger spaces. It has a clean white finish and comes with the essential installation fittings for a straightforward wall-mounted installation.

Key details

  • Type 11 radiator: single panel with single convector
  • Size: 500 mm high x 2200 mm wide
  • Horizontal wall-mounted orientation
  • Finish: white enamel in RAL 9016 with gloss finish
  • Material: mild steel
  • Heat output: 1795 W at Delta T50 and 7846 BTU at Delta T60
  • Tapping centres: 2200 mm
  • Supplied with brackets, bolts, vents and plugs
  • Includes 1/2 inch tappings and 4 fixing points
  • Maximum operating pressure: 10 bar
  • Maximum operating temperature: 120 C
  • Manufactured under BS EN ISO 9001 quality system and outputs comply with EN442

Refer to the manufacturer's latest instructions before installation.
